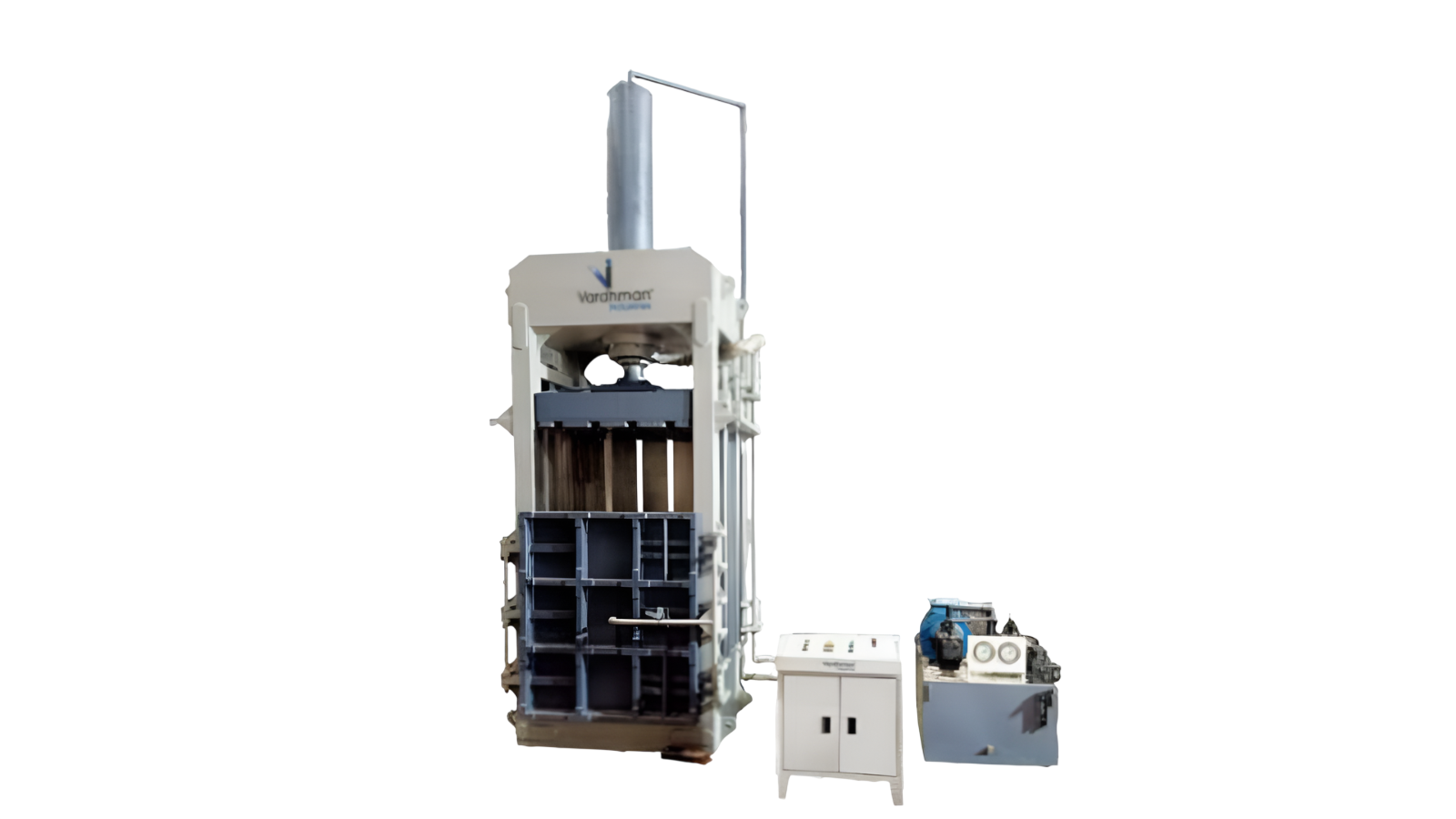

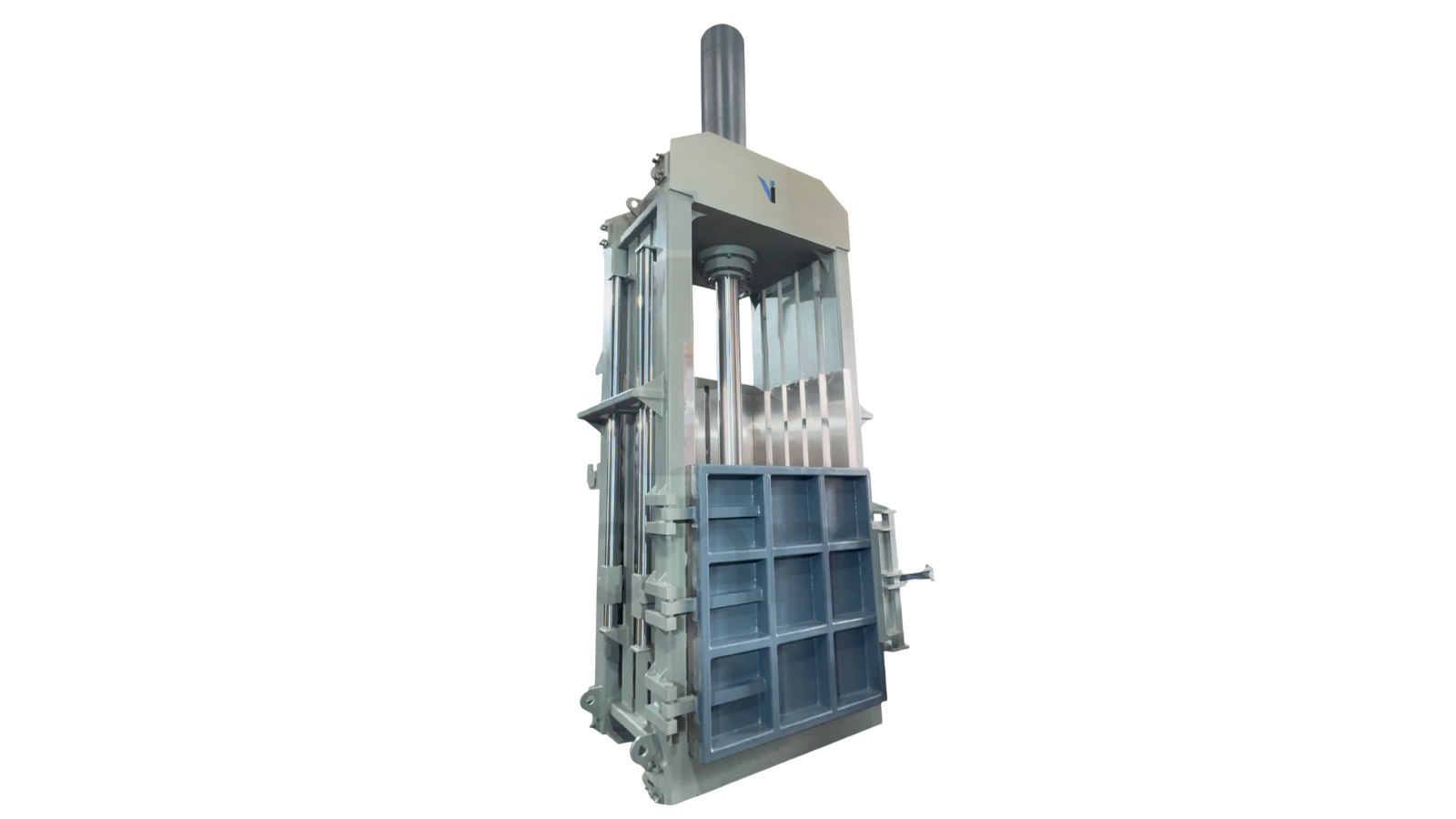

FIBC Jumbo Bag Bale Press is engineered for efficient processing and packaging of bulky FIBCs and jumbo bags into ultra-dense, export-ready bales. Built with advanced technology and robust construction, the machine delivers smooth operation, low maintenance, and consistent production performance for various heavy-duty woven fabrics.
Designed for modern industrial packaging and woven sack manufacturing industries, this press ensures energy-efficient operation with high output capacity and reliable performance. It is suitable for processing fresh FIBCs, bulk cement bags, heavy mineral sacks, and flexible intermediate bulk containers with excellent high-density export bale finishing quality.
| Model | Capacity (Ton) | Table size (mm) | Pressure (Kg/Cm)2 | Mini Bale Height (mm) | Motor Kw | Pusher Motor Kw | Day Light Gap (mm) | Oil (Ltr.) | Dimension (mm) |
|---|---|---|---|---|---|---|---|---|---|
| VIFBP 100 MT | 100 | 1050 X 900 | 160 | 200 | 15 | 2.2 | 1800 | 300 | 1100 X 2200 X4600 |
| VIFBP 120 MT | 120 | 1050 X 900 | 180 | 400 | 15 | 2.2 | 2000 | 450 | 1100 X 2200 X 4800 |
| VIFBP 150 MT | 150 | 1100 X 950 | 225 | 400 | 22 | 3.7 | 2000 | 650 | 1700 X 2500 X 4900 |
