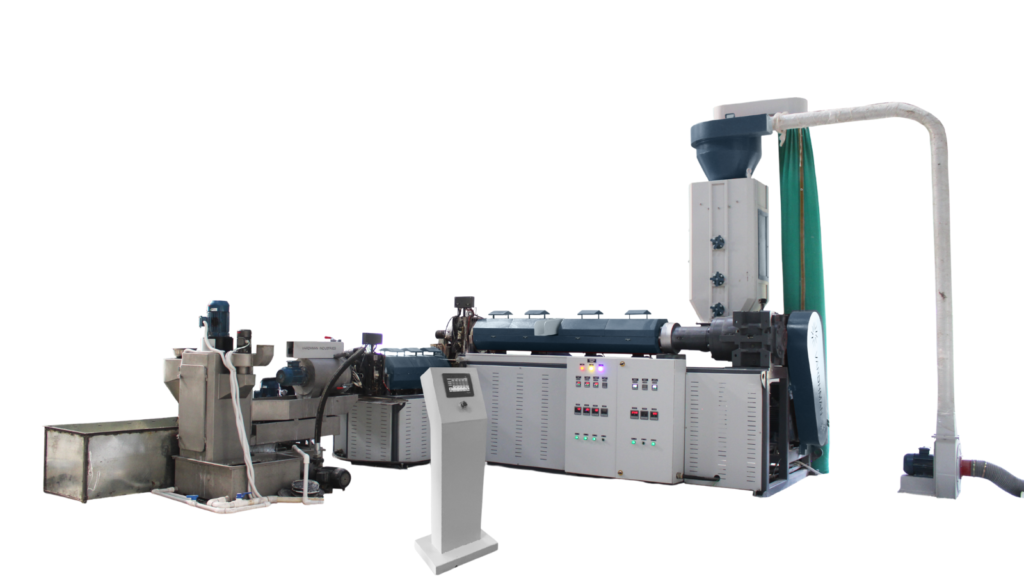

The Mother-Baby Recycling Plant (Double Stage Recycling Plant) is engineered for the highly efficient processing of heavily printed, washed, and moisture-laden plastic waste into premium, void-free, and uniform granules. Integrating a high-capacity force feeder for smooth material intake and an advanced dual-extrusion system, the primary “Mother” extruder handles bulk melting and aggressive gas venting, while the secondary “Baby” extruder refines, filters, and stabilizes the polymer for precision cutting.
Designed for demanding modern recycling industries, this automated plant ensures energy-efficient operation and maximum output capacity even when handling contaminated materials. It is exceptionally suitable for processing washed LDPE, HDPE, and PP films or woven sacks, utilizing advanced Die Face Cutting (DFC) technology to deliver perfectly uniform, bone-dry granules with excellent finishing quality.
| Model | Output Kg./hr | L/D Ratio | Main Motor KW. | Connection Load Kw. | Grinder Kw. | Dimension (LxWxH) Ft. |
|---|---|---|---|---|---|---|
| RPMB 100-100 | 130-150 | 22:1/17:1 | 36.7/18 | 147.70 | 18.75 | 17 X 14 X 12 |
| RPMB 120-120 | 180-200 | 22:1/14:1 | 36.7/22 | 189.86 | 30 | 18 X 15 X 12 |
| RPMB 130-130 | 200-280 | 22:1/14:1 | 55.6/22 | 214.95 | 36.77 | 19 X 15 X 12 |
| RPMB 150-150 | 300-350 | 22:1/14:1 | 91.9/30.6 | 273.16 | 44.5 | 22 X 15 X 12 |
